KC-Clip System Profiles
Two-part clip profiles for floating floors: the base rail is fixed first, the visible top clips on. No screws in sight, and the floor keeps room to move. Design-Clip for resilient flooring and carpet, Mono-Clip for laminate, engineered wood and other hard floors.
Custom sizes, finishes or project quantities? Send a trade request

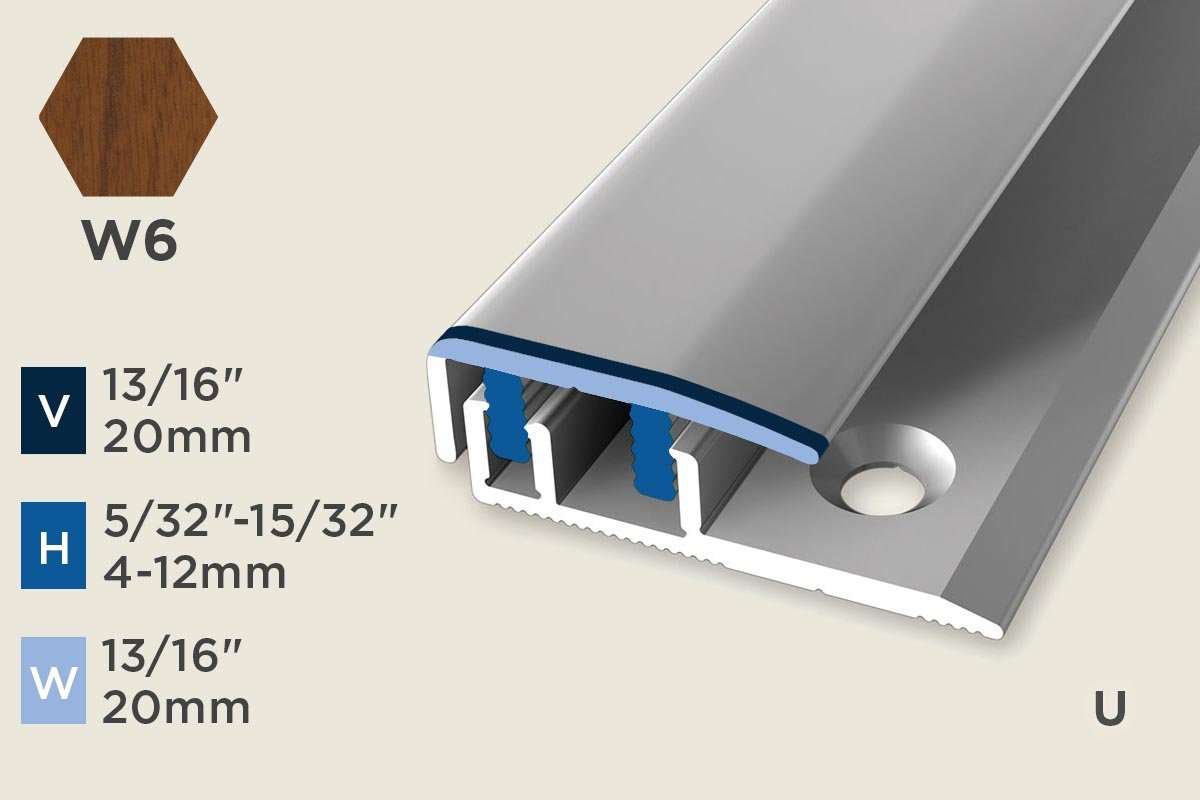

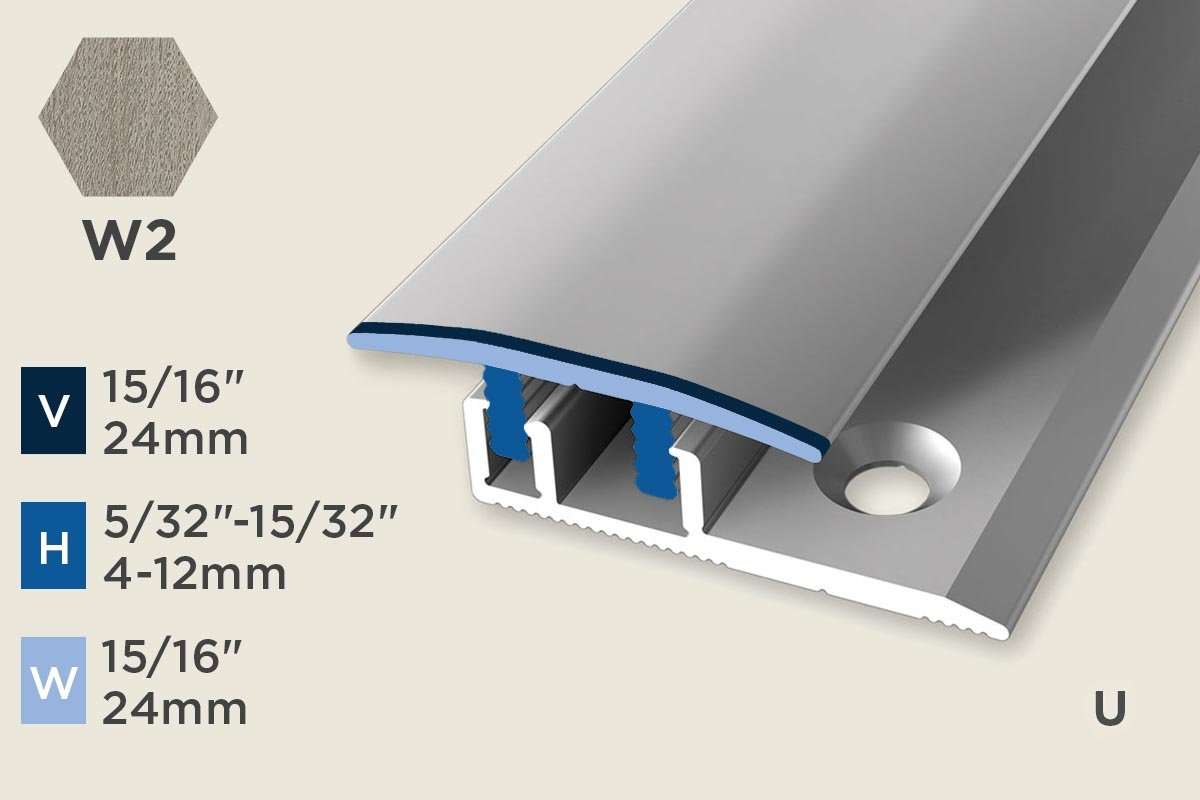

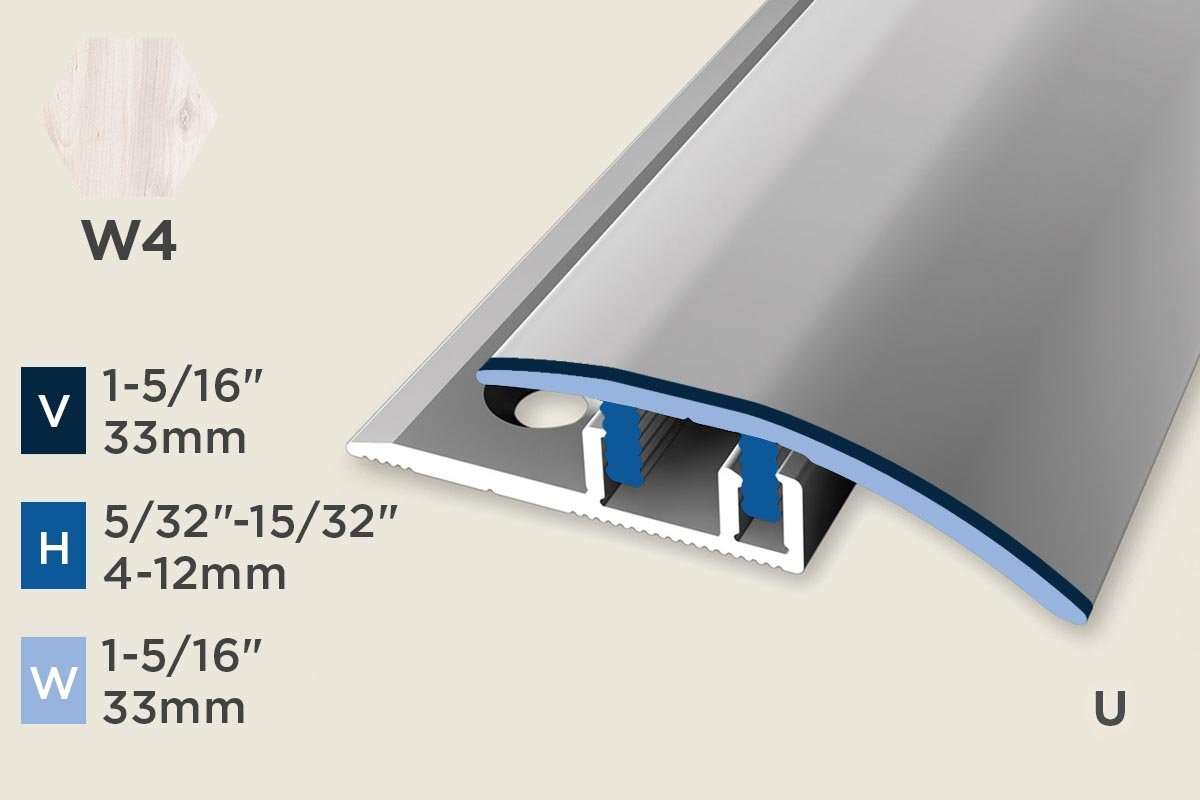

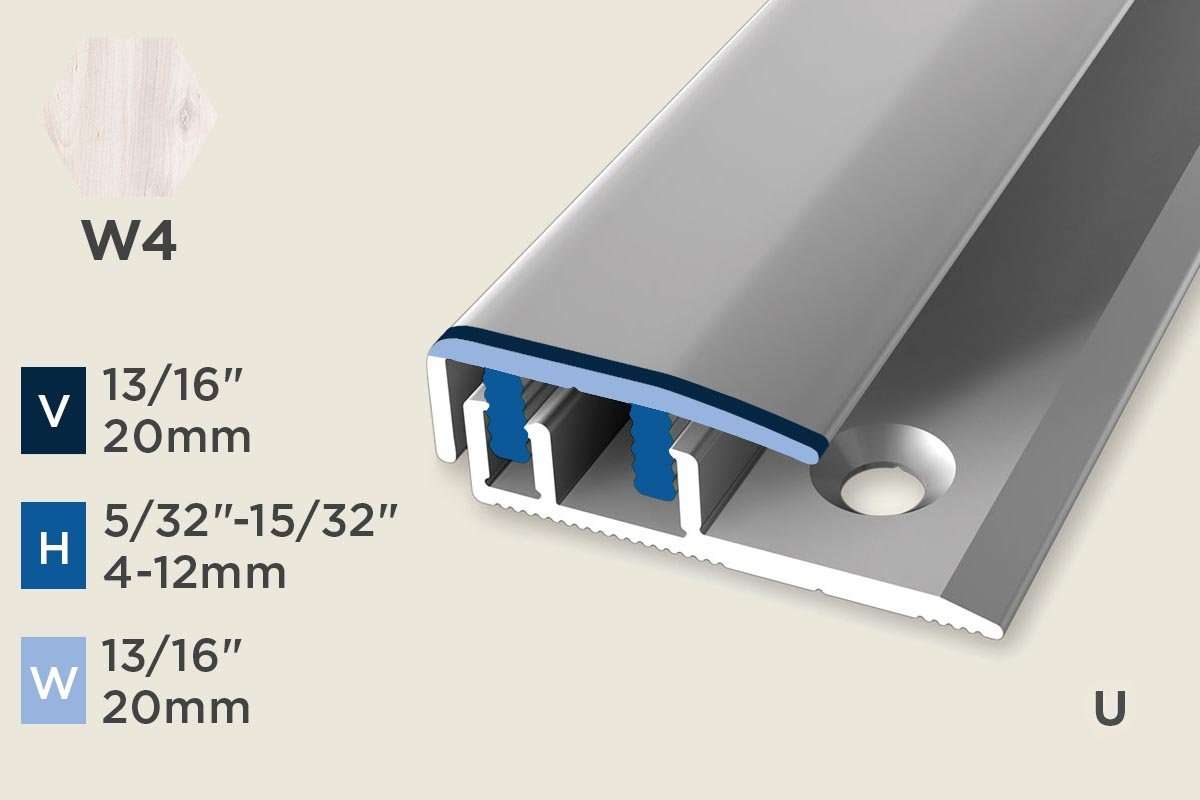

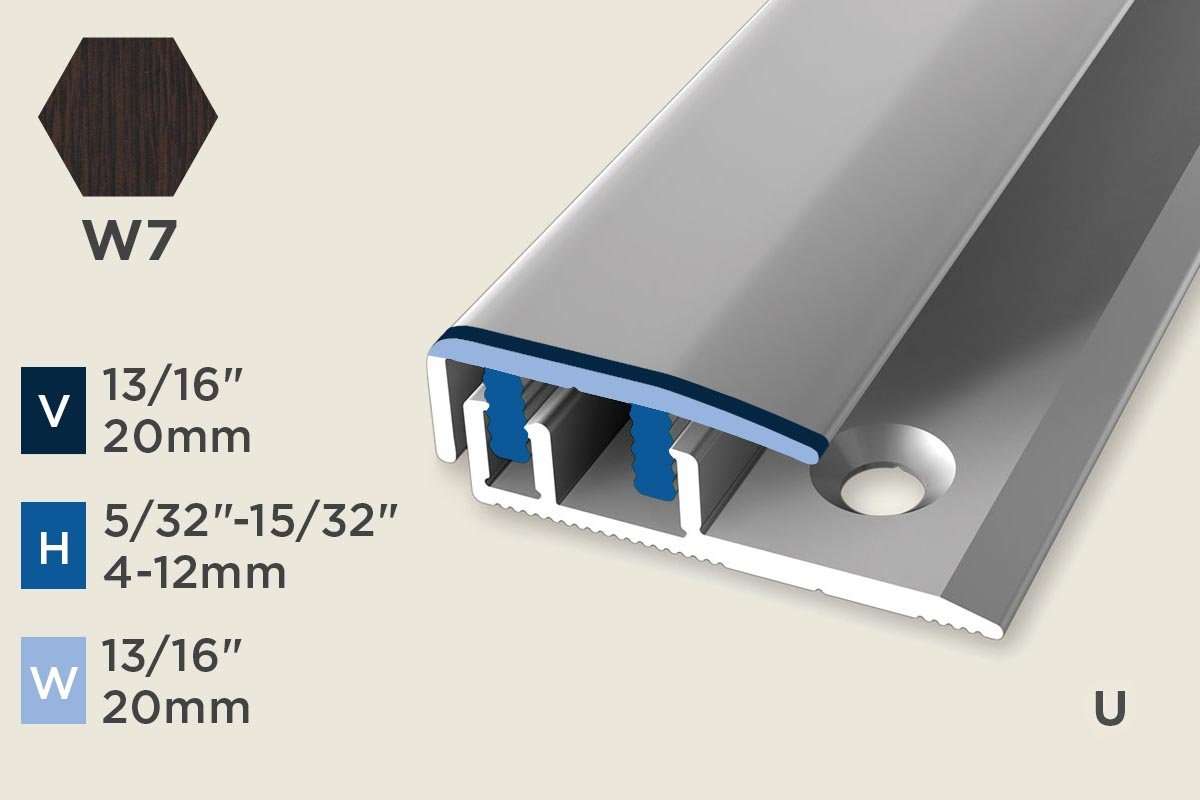

Both are two-part systems in three shapes: reducer (TP1), edge trim (TP2) and same-level transition (TP3).
| KC-D | KC-M | |
|---|---|---|
| Floor coverings | Resilient flooring such as click vinyl, and carpet | Laminate, engineered wood and other hard flooring |
| Floor height | 5/32" to 15/32" (4–12 mm) | 9/32" to 7/8" (7–22 mm) |
| Expansion allowed | 1/4" (6 mm) | 1/2" (13 mm) |
| Connection | Click-in top on one countersunk base | Friction-locked top on one of three bases |
| Finishes | Silver, sand, bronze, seven wood decors | Silver, sand, bronze, seven wood decors |
-
KC-M — Mono-Clip – Base – 12-17mm -
KC-M — Mono-Clip – Base – 7-12mm -
KC-M — Mono-Clip – 7-22mm (21/32"-7/8") – Base – 17-22mm -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Reducer/ADA – Bronze -

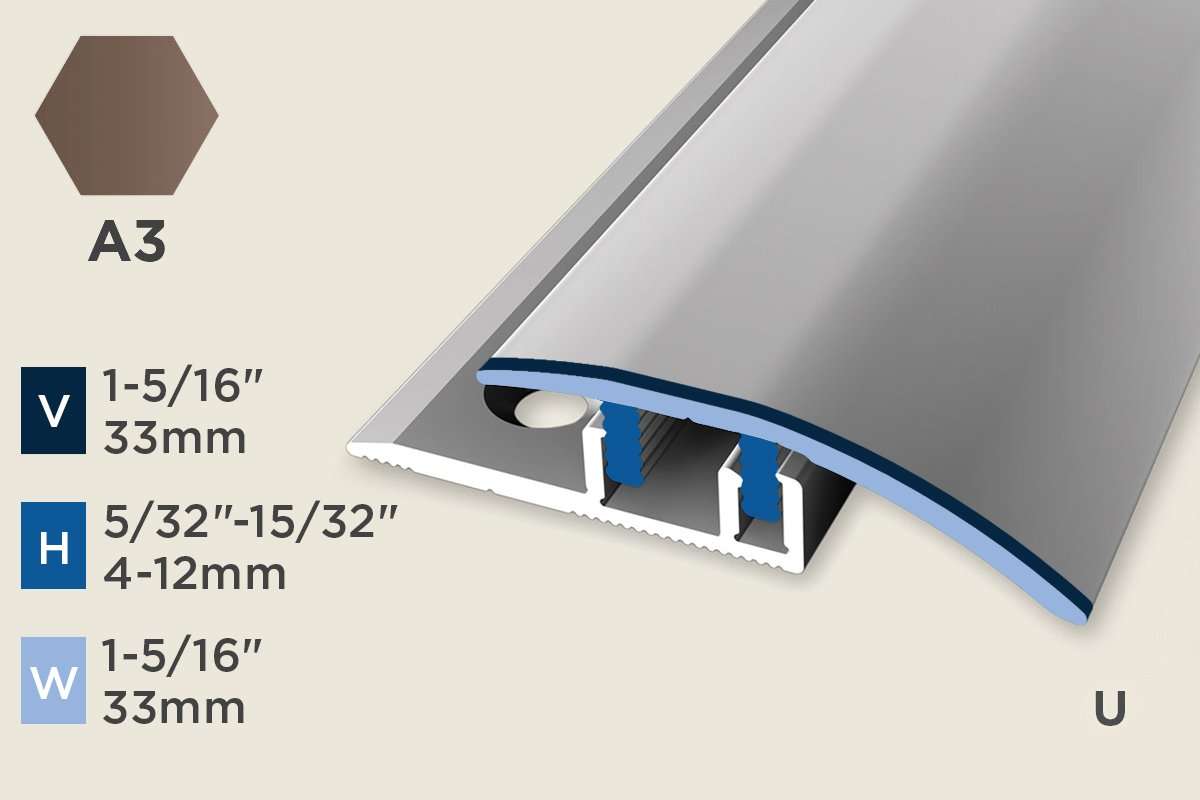

KC-D — Design-Clip – 4-12mm (5/32"-15/32") – Reducer/ADA – Bronze -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Transition – Oak Light -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Transition – Bronze -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Transition – Sand -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Edge Trim – Bronze -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Edge Trim – Silver -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Reducer/ADA – Silver -

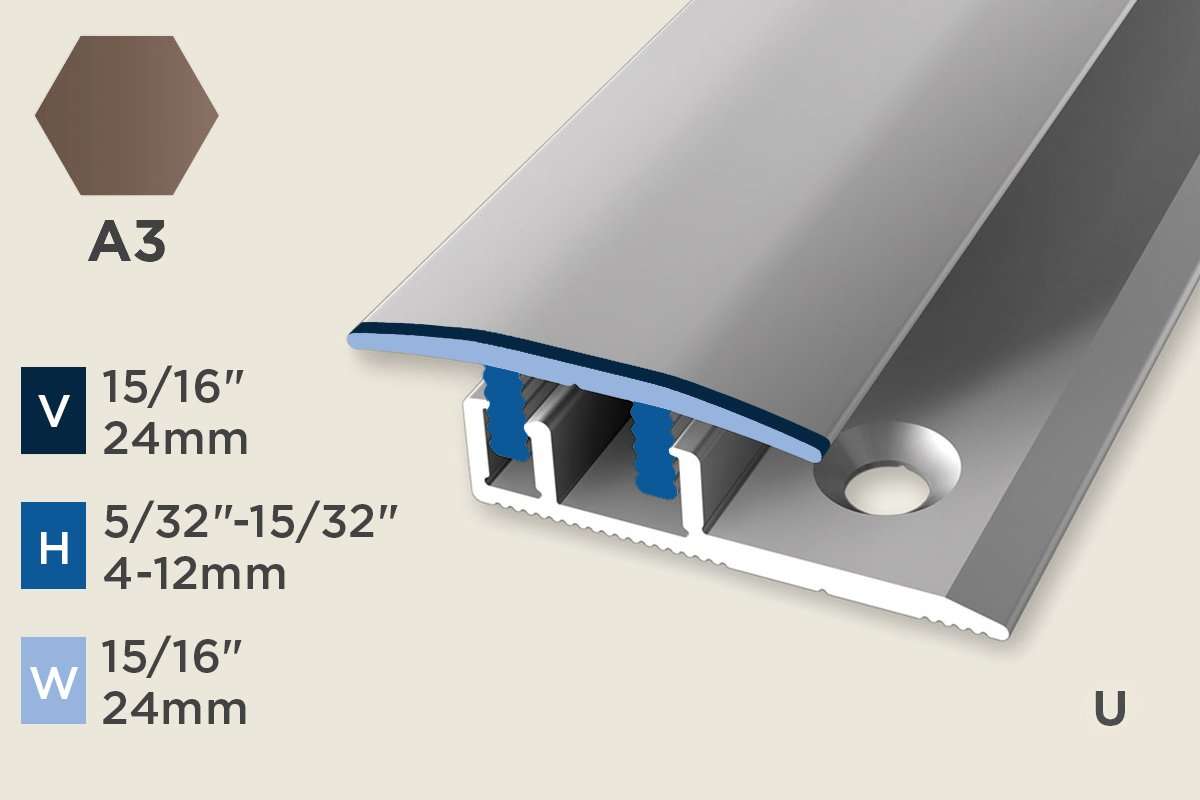

KC-D — Design-Clip – 4-12mm (5/32"-15/32") – Transition – Bronze -
KC-D — Design-Clip – 4-12mm (5/32"-15/32") – Transition – Silver -

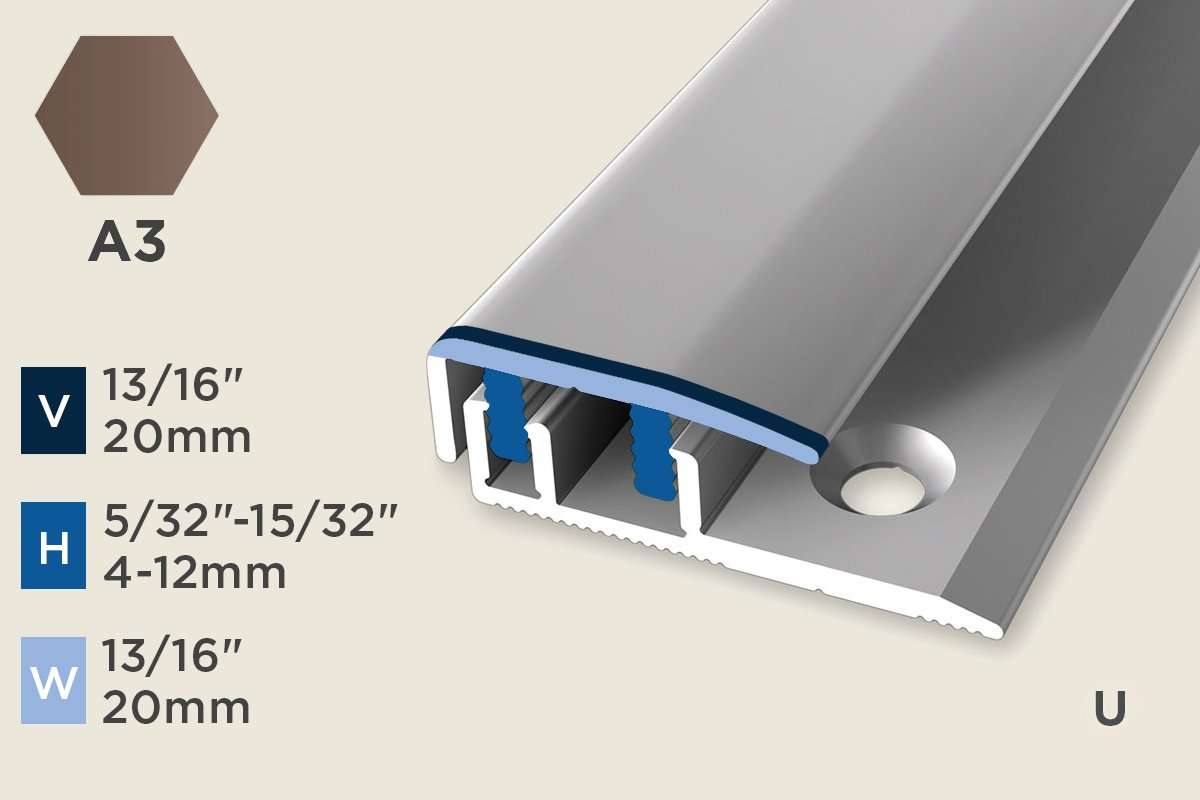

KC-D — Design-Clip – 4-12mm (5/32"-15/32") – Edge Trim – Bronze -

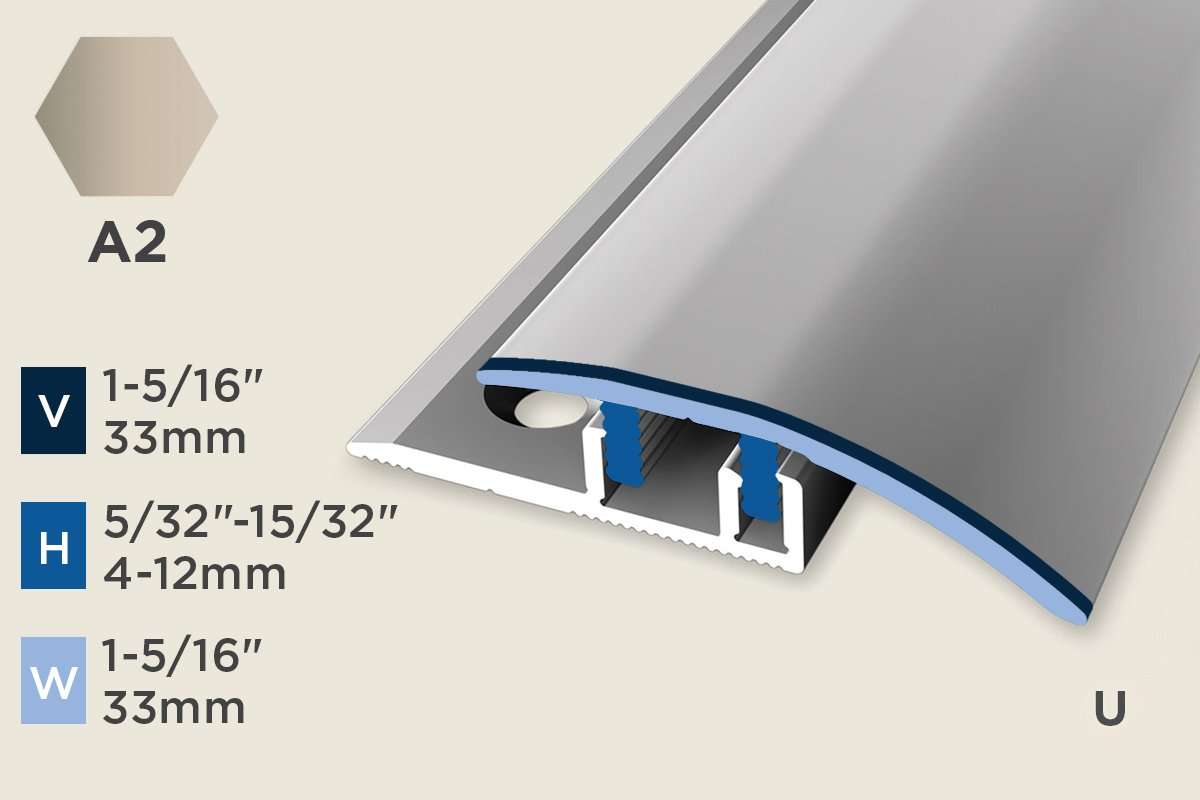

KC-D — Design-Clip – 4-12mm (5/32"-15/32") – Reducer/ADA – Sand -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Edge Trim – Oak Cream -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Edge Trim – Oak Beige Grey -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Edge Trim – Wenge -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Reducer/ADA – Oak Grey -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Transition – Wenge -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Reducer/ADA – Oak Light Grey -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Reducer/ADA – Oak Cream -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Reducer/ADA – Oak Beige Grey -
KC-M — Mono-Clip – 7-22mm (9/32"-7/8") – Transition – Walnut
About KC-Clip System Profiles
Why a floating floor needs room to move
Laminate and click vinyl are not bonded to the subfloor. They expand and contract as a whole, which is why they are laid with a gap at every edge and transition. A clip profile bridges that gap and leaves the floor free to move. A rigid profile screwed straight through a floating floor takes that allowance away, which is why the clip system exists.
Mono-Clip: choose the base, then the top
Mono-Clip bases and tops are separate products. The bases in natural aluminum match the floor height: 7–12, 12–17 or 17–22 mm. Each base takes one of three tops: TP1 is a reducer for laminate to carpet or any lower floor and is ADA compliant up to 9 mm, TP2 is an edge trim that finishes the open edge like an end cap, and TP3 is a T-shaped transition for two floors of the same height, the metal counterpart of a T-molding.
Finishes
The visible tops come in anodized aluminum in silver, sand or bronze and in seven wood decors (W1–W7) that blend with laminate and wood. The wood decors have an AC3 abrasion-resistant coating. For floors that are bonded rather than floating, see the KT-Transition profiles.
Frequently asked questions
Do I need to order the Mono-Clip base separately?
Yes. Choose the base for your floor height (7–12, 12–17 or 17–22 mm) and one top per run: TP1 reducer, TP2 edge trim or TP3 transition.
How long are the bars?
Küberit profiles come in bars of 8' 2-1/2" (2.50 m), and the price of a profile is per bar. End caps, inserts and accessories are sold as listed on their product page.
What does shipping cost?
$89 flat rate on orders of $400 or more, shipped as full-length bars. On smaller orders, choose the $89 rate with bars cut to 95" (2,414 mm) at checkout.
Where do I find dimensions and installation details?
Product pages include the Küberit data sheet with dimensions and installation steps, and most profiles also have a 3D preview.
Is there a warranty?
Küberit profiles are covered for five years from the date of purchase against defects in material and workmanship, when installed as described in the data sheet.
Can someone help me choose?
Call +1 (888) 284-7567, Monday to Friday, 8am to 5pm CT. Have the floor covering and its thickness at hand.
